Cylindrical Mandrel Tester

BGD 564 Cylindrical Mandrel Tester complies with ISO 15192011ASTM D522 and DIN 53152.It is used to assess the resistance of a coating of paint, varnish or related product to cracking and/or detachment from a metal or plastic substrate when subjected to bending round a cylindrical mandrel under standard conditions.

This tester consists of three PVC rolls wich are arranged side by side and run on pivoting bearings. Thus, the coating is not exposed to damge or shear stress during the test.

The test can be carried out

---either as a “pass/fail” test, by carrying out the test with a single specified size of mandrel, to assess compliance with a particular requirement;

---or by repeating the procedure using successively smaller mandrels to determine the diameter of the first mandrel over wich the coating cracks and/or becomes detached from the substrate.


BGD 564-08.jpg


BGD 564-13.jpg


BGD 564-01.jpg







  Latest and humanization design, convenient and quick to operate.

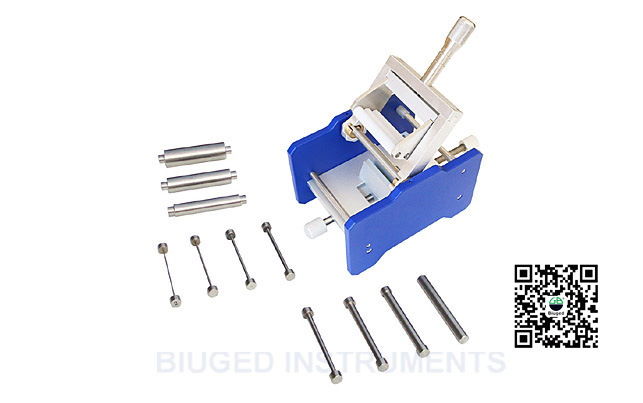

12 pcs stainless steel mandrels with different diametersΦ2Φ3Φ4Φ5 Φ6 Φ8 Φ10 Φ12 Φ 16 Φ20 Φ25 Φ32mm

All mandrels are machined precisely by high hardness stainless steel, 2mm and 3mm mandrels are done by hardening treatment, it won’t be deformed even bend the thick test panels.

 Suitable test panels sizeLength 120mm150mmwidith ≤80mmthickness ≤1.0mm

 Come with Calibration Certification
Ordering InformationBGD 564--Cylindrical Mandrel Tester


Introduction Video



Operation Video
