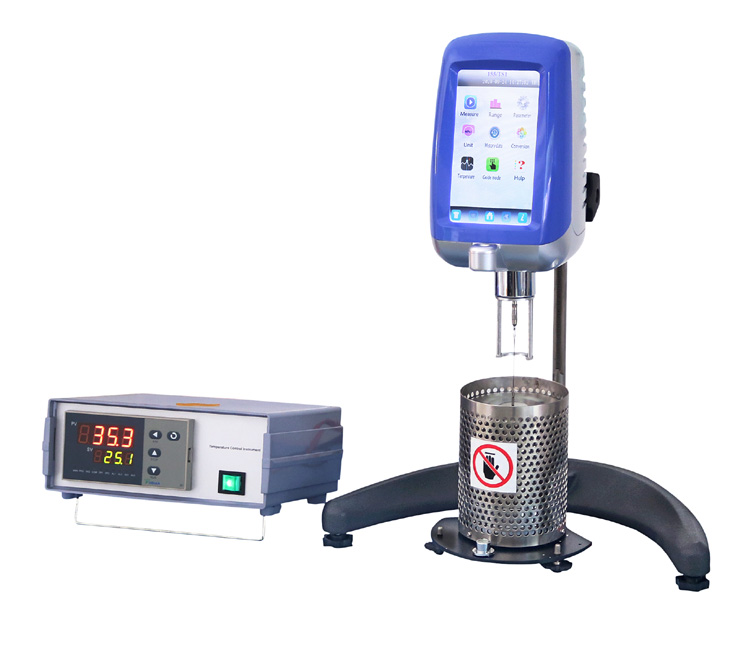

This High Temperature Intelligent Touch-screen Viscometer comes with a heating device(thermosal) which can heat sample to a appointed temperature. It is used to test hot melt adhesive, asphalt, paraffin and hot polymer.

◆ 7 inch high definition touch scree, easy to operate and display rich information. Powerful human-machine interface and various humanized operation menu for conversion.

◆ Anti-static shell and PC material lifting pole

◆ Simple operation for temperature control, sample container with thermal insulation and steady temperature control

◆ ARM chip processor: higher data processing speed

◆ New designed durable small axles

◆ Come with a gigabit ethernet interface to transfer data, reliable and quick.

◆ Support external storage: single point, continuous and timing data

◆ Calibrated by user, temperature and viscosity correction factor are protected by password, also can be modified by user when they have reliable and accurate data.

◆ Can measure viscosity by infinitely variable speed, input any speed, the instrument would display the max. measuring range under different rotors. Convenient for user to choose suitable testing parameters.

◆ Convert freely between various viscosity units, dynamic viscosity convert kinematic viscosity automatically

◆ Accompanied with detailed operation instruction

Main Technical Parameters

■ Measurement Range (mPa.s)：two ranges for optional (also can be customized) as below:

① For medium viscosity sample：50-10M (mPa•s/cP)

② For low viscosity sample：5-1M (mPa•s/cP)

■ Rotors ：SC4-21#，27#，28#，29# four spindles；

Optional: SC4-14, 15, 16, 18, 25, 31, 34

■ Rotate Speed：0.1 – 200 RPM (stepless speed)

■ Measurement Accuracy： ±1.0 % (of the full range)

■ Repeatability：0.2 % (of the full range)

■ Thermosal Temperature Range：RT+10℃～250℃ or RT+10℃～500℃ (precision 0.1℃)

■ Electrical Power：110V&220V/50Hz&60Hz

■ Ordering Information：

BGD 155/TS1---High-temperature Intelligent Touch-screen Viscometer (RT+10℃～250℃)

BGD 155/TS2---High-temperature Intelligent Touch-screen Viscometer (RT+10℃～500℃)

THD Series---Low Temperature Thermostatic Bath
BGD 1600---Standard Oil（500ml）

BGD 1601---Low Viscosity Adapter（The 0th rotor and can measure 1.0 mPa.s sample）

BGD 1602---Small Sample Adapter（It’s specially designed for customers with small samples and requires only a quantity as small as 5～18ml；Sample cup is easily cleaned, installed, removed, and observed；Accurate data of shear rate and shear stress can be obtained for a minute analysis of the fluid characteristics of the sample；One-off sample cups are available）

BGD 1603---Mini Single Color Printer

BGD 1604---RTD Thermometer（-20℃～120℃）

BGD 1605---Thermoses（It has been designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymer and similar liquid materials at high temperatures. It allows control of a sample’s temperature at a range of room temperature +300℃. It can program the intelligent thermostat and ensures its temperature fluctuation within 0.1℃. Sample dosage is as small as 10ml, and one-off sample cups are available. Standard type of SC4 spindle can be applied, which is easy to use）

BGD 1607---BGD 155 Viscometer data collection and graphing software（Automated data collection； resulting in viscometer graph, and recording measuring data each time；Allowing comparison of at most 10 history data；Output Excel documents）

BGD 155-TS High-temperature Intelligent Touch-screen Viscometer.pdf
